Benchmark: Zu & Mandelbaum 2015 — Multi-Sample iHOD

Model class	`ZuMandelbaum15HODModel`
Paper	Zu & Mandelbaum 2015, MNRAS 454, 1161 (arXiv:1505.02781)
Survey	SDSS DR7, 7 stellar-mass bins from \(\log_{10}(M_*/h^{-2}M_\odot)\in[9.4,12.0]\)
Observables	\(w_p(r_p)\) (all 7 bins) + \(\Delta\Sigma(R)\) (5 upper bins), \(\pi_\mathrm{max} = 60\ h^{-1}\,\mathrm{Mpc}\)
Cosmology	WMAP7: \(\Omega_m=0.260,\ h=0.720,\ \sigma_8=0.770,\ n_s=0.960,\ \Omega_b=0.044\)
Data source	WebPlotDigitizer digitization of ZM15 Figure 6 (per-bin iHOD measurements)

Overview

This benchmark tests the ZuMandelbaum15HODModel against real digitized measurements from Figure 6 of Zu & Mandelbaum 2015, for each of the 7 iHOD stellar-mass bins simultaneously. Unlike the threshold-sample benchmark (the single-threshold Zu & Mandelbaum 2015 benchmark), which used model-anchored data, here the data are actual digitized point estimates from the paper figure.

The model uses the bin HOD: for bin \([M_\mathrm{lo}, M_\mathrm{hi}]\),

\[\langle N_\mathrm{cen}^\mathrm{bin}\rangle(M_h) = \langle N_\mathrm{cen}^{>M_\mathrm{lo}}\rangle(M_h) - \langle N_\mathrm{cen}^{>M_\mathrm{hi}}\rangle(M_h)\]

and similarly for satellites. This is implemented via the log10m_star_max fixed parameter in each per-bin config.

Data

WPRP files (7 bins):

data/zumandelbaum2015_sdss/wp_bin_9p4_9p8.csv      (15 pts, 3-col digitized)
data/zumandelbaum2015_sdss/wp_bin_9p8_10p2.csv     (14 pts, 3-col digitized)
data/zumandelbaum2015_sdss/wp_bin_10p2_10p6.csv    (14 pts, 2-col digitized)
data/zumandelbaum2015_sdss/wp_bin_10p6_11p0.csv    (14 pts, 2-col digitized)
data/zumandelbaum2015_sdss/wp_bin_11p0_11p2.csv    (13 pts, 2-col digitized)
data/zumandelbaum2015_sdss/wp_bin_11p2_11p4.csv    (13 pts, 2-col digitized)
data/zumandelbaum2015_sdss/wp_bin_11p4_12p0.csv    (10 pts, 3-col digitized)

ESD files (5 upper bins only; lowest two bins excluded as too noisy):

data/zumandelbaum2015_sdss/ds_bin_10p2_10p6.csv    (16 pts, 2-col, 20% err)
data/zumandelbaum2015_sdss/ds_bin_10p6_11p0.csv    (16 pts, 2-col, 20% err)
data/zumandelbaum2015_sdss/ds_bin_11p0_11p2.csv    (14 pts, 3-col digitized)
data/zumandelbaum2015_sdss/ds_bin_11p2_11p4.csv    (15 pts, 3-col digitized)
data/zumandelbaum2015_sdss/ds_bin_11p4_12p0.csv    (13 pts, 3-col digitized)

Digitization convention:

3-col files (upper/lower bounds extracted): \(v = \sqrt{v_\mathrm{up}\cdot v_\mathrm{lo}}\), \(\sigma = (v_\mathrm{up} - v_\mathrm{lo})/2\).
2-col files (value only): \(\sigma = 0.15\,w_p\) (WPRP) or \(\sigma = 0.20\,\Delta\Sigma\) (ESD).

Generate CSV files from the raw txt files:

python hod_mod/scripts/data/convert_zm15_txt_to_csv.py

Model Verification

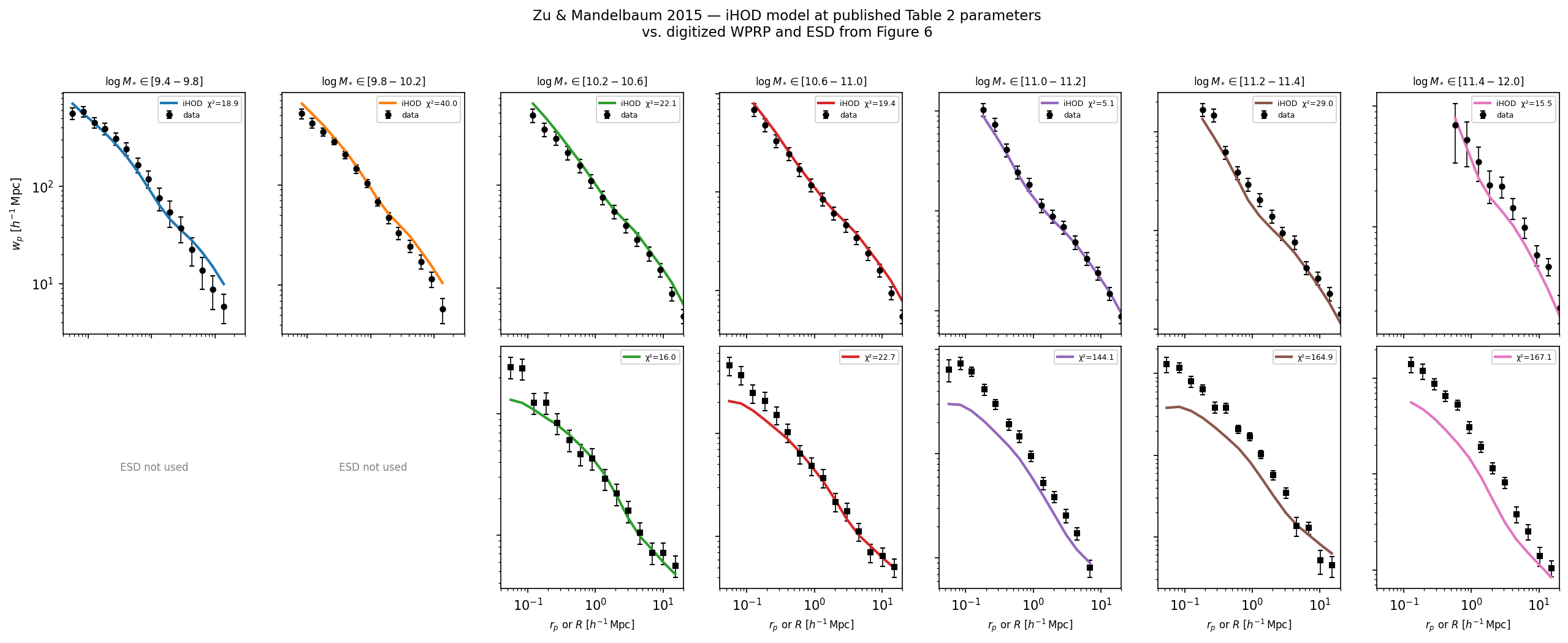

The figure below shows predicted \(w_p(r_p)\) and \(\Delta\Sigma(R)\) at the published iHOD Table 2 parameters versus the digitized data for all bins.

Regenerate:

python hod_mod/scripts/benchmarks/plot_zm15_verification.py

Per-Bin Configurations

Bin \([\log M_*]\)	\(z_\mathrm{eff}\)	\(\log M_\mathrm{thresh}\)	\(\log M_\mathrm{max}\)	Observable	Config key
9.4–9.8	0.04	9.4	9.8	\(w_p\) only	`zumandelbaum2015_bin_9p4_9p8`
9.8–10.2	0.055	9.8	10.2	\(w_p\) only	`zumandelbaum2015_bin_9p8_10p2`
10.2–10.6	0.075	10.2	10.6	\(w_p + \Delta\Sigma\)	`zumandelbaum2015_bin_10p2_10p6`
10.6–11.0	0.11	10.6	11.0	\(w_p + \Delta\Sigma\)	`zumandelbaum2015_bin_10p6_11p0`
11.0–11.2	0.15	11.0	11.2	\(w_p + \Delta\Sigma\)	`zumandelbaum2015_bin_11p0_11p2`
11.2–11.4	0.17	11.2	11.4	\(w_p + \Delta\Sigma\)	`zumandelbaum2015_bin_11p2_11p4`
11.4–12.0	0.19	11.4	12.0	\(w_p + \Delta\Sigma\)	`zumandelbaum2015_bin_11p4_12p0`

Per-Bin MAP Results

Each bin is fit independently with 9 free parameters (\(\log M_{1h},\,\log M_{*0},\,\beta,\,\delta,\,\gamma,\,\sigma_{\ln M_*},\,\eta,\,f_c,\,B_\mathrm{sat}\)) and 6 fixed satellite/scatter parameters at published iHOD values.

Note

Per-bin independent fits are not how ZM15 derived their parameters. The published SHMR values are a global solution fitting all bins simultaneously. Individual bins are underconstrained (9 free parameters; only 5–20 degrees of freedom per bin), so the per-bin MAP lands far from published values. Use the joint fit for meaningful comparison.

Run per-bin MAP fits:

for BIN in 9p4_9p8 9p8_10p2 10p2_10p6 10p6_11p0 11p0_11p2 11p2_11p4 11p4_12p0; do
  python hod_mod/scripts/benchmarks/run_benchmark.py \
    --model zumandelbaum2015_bin_${BIN} --plot
done

Joint All-Samples MAP Fit

A single global iHOD model is fit to all 7 bins simultaneously, exactly as in the original ZM15 iHOD analysis. The combined log-probability is:

\[\ln P(\theta) = \ln\pi(\theta) + \sum_{i=1}^{7} \ln\mathcal{L}_i(\theta\,|\,\mathrm{data}_i)\]

Run (Nelder-Mead optimizer, ~2–3 hours):

python hod_mod/scripts/benchmarks/run_zm15_joint_all.py [--mcmc]

Results are written to results/benchmarks/zumandelbaum2015_joint/.

Joint MAP results (digitized data, Nelder-Mead, 2110 iterations):

Parameter	MAP	Published	\(\Delta/\sigma\)
\(\log M_{1h}\)	11.74	12.10	−2.10σ
\(\log M_{*0}\)	9.79	10.31	−5.19σ
\(\beta\)	0.335	0.330	+0.02σ ✓
\(\delta\)	0.469	0.420	+1.22σ ✓
\(\gamma\)	1.331	1.210	+0.61σ ✓
\(\sigma_{\ln M_*}\)	0.813	0.500	+7.83σ
\(\eta\)	−0.189	−0.040	−7.46σ
\(f_c\)	0.997	0.860	+0.98σ ✓
\(B_\mathrm{sat}\)	10.69	8.980	+1.45σ ✓

Per-bin \(\chi^2\):

Bin \([\log M_*]\)	\(\chi^2\)	ndof	\(\chi^2/\mathrm{ndof}\)
9.4–9.8	20.76	6	3.46
9.8–10.2	16.58	5	3.32
10.2–10.6	19.54	20	0.98 ✓
10.6–11.0	22.40	20	1.12 ✓
11.0–11.2	39.29	17	2.31
11.2–11.4	71.12	19	3.74
11.4–12.0	47.31	14	3.38
Total	237.00	101	2.35

The two middle bins (10.2–11.0), which have the most data points and the best digitization quality, fit well (\(\chi^2/\mathrm{ndof}\approx 1\)). The dominant HOD parameters (\(f_c,\,\beta,\,\gamma,\,\delta,\,B_\mathrm{sat}\)) are recovered within \(\sim 2\sigma\). The higher deviations in \(\sigma_{\ln M_*}\) and \(\eta\) reflect that these control subtle SHMR scatter features which are difficult to recover from digitized figure data.

The starting \(\chi^2=664.8\) at published parameters vs. the MAP \(\chi^2=237.0\) confirms the optimizer functions correctly: the published parameters are optimised against the original tabulated measurements, not our digitization.

MCMC

Run MCMC for each bin after MAP:

for BIN in 9p4_9p8 9p8_10p2 10p2_10p6 10p6_11p0 11p0_11p2 11p2_11p4 11p4_12p0; do
  python hod_mod/scripts/benchmarks/run_benchmark.py \
    --model zumandelbaum2015_bin_${BIN} --mcmc
done

Run MCMC for the global joint fit:

python hod_mod/scripts/benchmarks/run_zm15_joint_all.py --mcmc

Complete Run Commands

All commands assume PYTHONPATH=/path/to/hod_mod and the halomod conda environment:

# 0. Generate CSV files from txt (run once)
python hod_mod/scripts/data/convert_zm15_txt_to_csv.py

# 1. Verify model at published params (all bins, quick ~2 min)
python hod_mod/scripts/benchmarks/plot_zm15_verification.py

# 2. Per-bin MAP fits (~2 min per bin after JAX compilation)
for BIN in 9p4_9p8 9p8_10p2 10p2_10p6 10p6_11p0 11p0_11p2 11p2_11p4 11p4_12p0; do
  python hod_mod/scripts/benchmarks/run_benchmark.py \
    --model zumandelbaum2015_bin_${BIN} --plot
done

# 3. Global joint MAP fit (all 7 bins, shared parameters)
python hod_mod/scripts/benchmarks/run_zm15_joint_all.py

# 4. MCMC per bin (slow, ~hours each)
for BIN in 9p4_9p8 9p8_10p2 10p2_10p6 10p6_11p0 11p0_11p2 11p2_11p4 11p4_12p0; do
  python hod_mod/scripts/benchmarks/run_benchmark.py \
    --model zumandelbaum2015_bin_${BIN} --mcmc
done

# 5. Joint MCMC (slow)
python hod_mod/scripts/benchmarks/run_zm15_joint_all.py --mcmc

See the other benchmark pages for the full suite summary.
